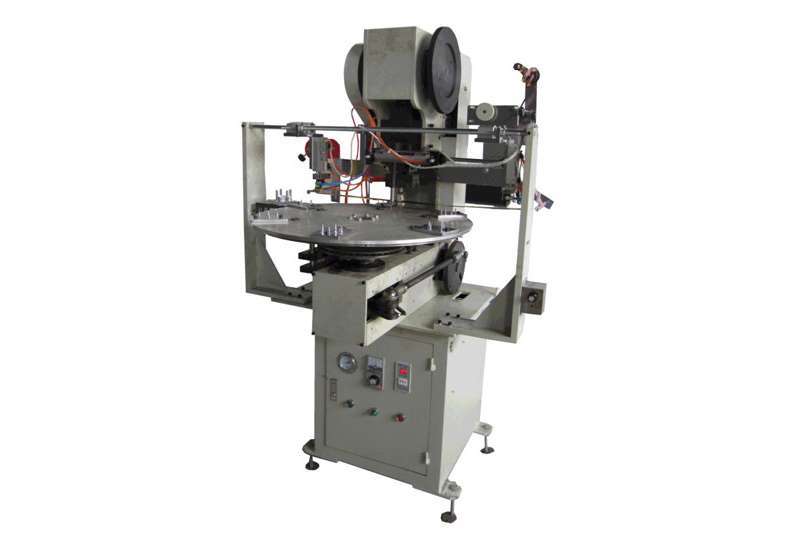

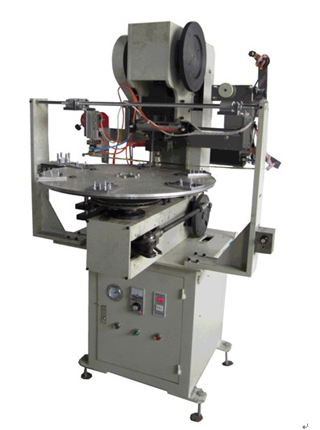

WT-70B  機(jī)械式六工位圓盤

WT-70B  Mechanical 6 Worktables Disc

燙金壓力           Gilding pressure

500Kg

燙金面積           Gilding area(mm)

10×10mm

電壓               Voltage

220V 50Hz

功率               Power

0.8Kw

主電機(jī)功率         Motor Power

0.65Kw

燙金溫度           Gilding Temperature

0～300℃

燙金精度           Stamping Accuracy

≤0.05mm

加熱功率           Heating power

0.25kw

加熱板行程         Heating plate range

40mm

工作臺可調(diào)行程     Worktable Adjustable Moving Range

N/A

工作效率           Efficiency

20-30次/分鐘  20-30times/min

外形尺寸           Packing size  (m)

1.1×1.18×1.7m

設(shè)備重量           Weight(Net/Gross)

350Kg

氣源壓力           Air Pressure

0.1-0.8Mpa
