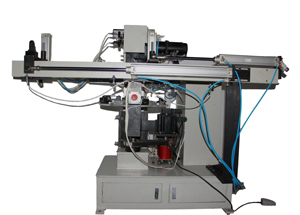

WT-75  8工位首飾盒燙金機

WT-75  8Worktables Jewelry Hot Stamping Machine

燙金壓力           Gilding pressure

100Kg

燙金面積           Gilding area(mm)

60×60mm

電壓               Voltage

220V   50Hz

功率               Power

1.3Kw

主電機功率         Motor Power

1.2Kw

燙金溫度           Gilding Temperature

0～200℃

燙金精度           Stamping Accuracy

±0.05mm

加熱功率           Heating power

60W per 180W in Total

加熱板行程         Heating plate range

50mm

工作臺可調行程     Worktable Adjustable Moving Range

0-120mm

工作效率           Efficiency

15-30次/分  15-30times/min

外形尺寸           Packing size  (m)

1.7×0.95×1.5m

設備重量           Weight(Net/Gross)

500Kg

氣源壓力           Air Pressure

0.8Mpa
