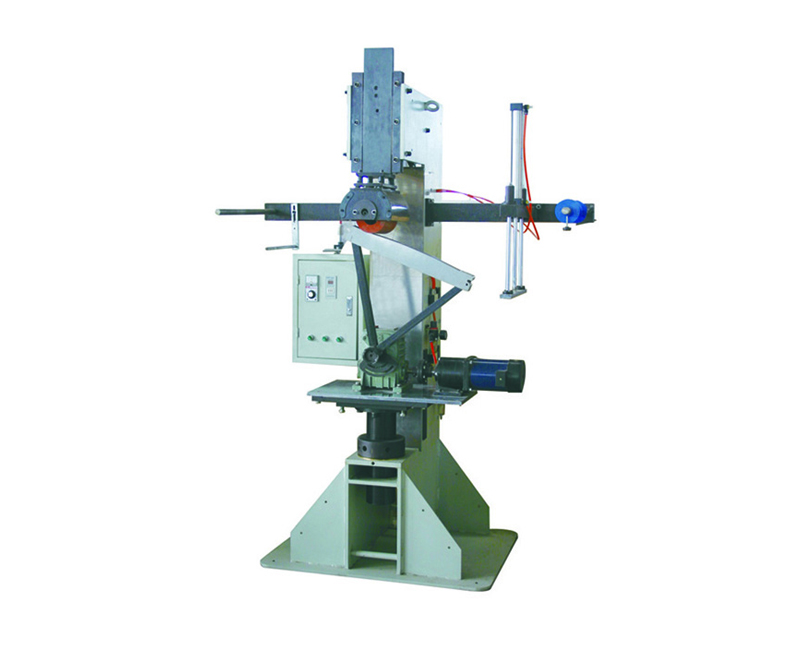

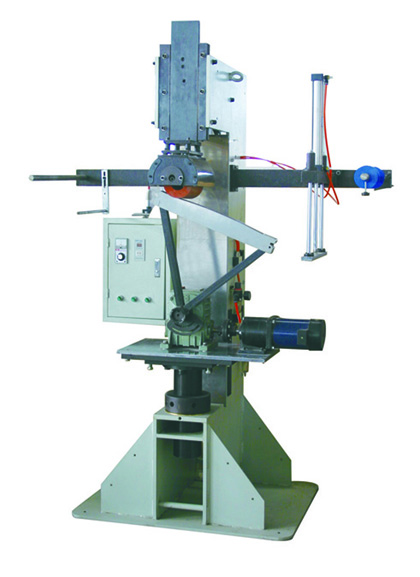

WT-9圓周、異型熱轉(zhuǎn)印適用Haier568升冰箱瓶座、 冰箱裝飾條等大異型塑料工件的燙印

Circle/Special Shaped Gilding Press Suitable  for  the gilding of  large special plastic component such as the chassis and decoration of refrigerator of Haier 568L

滾燙長度     Gilding length

700mm

曲面滾燙長度 Curved rolling length

Φ150×200mm

加熱功率     Heating power

4kw

燙金壓力     Gilding pressure

0.8Mpa

異型滾燙直徑 Special shaped rolling dia.

Φ400mm

電壓         Voltage

220v 50Hz

外形尺寸     Packing size

1.5×1.2×2.2m

設(shè)備重量     Weight(Net/Gross)

1.1T/1.25T

燙金溫度     Gilding temperature

0～300℃

熱轉(zhuǎn)印輥     Heat roller

Φ125×300mm

燙金速度     Gilding speed

0～9.9s
